Creating a Qdrant Cluster in Hybrid Cloud

Once you have created a Hybrid Cloud Environment, you can create a Qdrant cluster in that enviroment. Use the same process to Create a cluster. Make sure to select your Hybrid Cloud Environment as the target.

Create Hybrid Cloud Cluster

Note that in the “Kubernetes Configuration” section you can additionally configure:

Node selectors for the Qdrant database pods
Toleration for the Qdrant database pods
Additional labels for the Qdrant database pods
A service type and annotations for the Qdrant database service

These settings can also be changed after the cluster is created on the cluster detail page.

Create Hybrid Cloud Cluster - Kubernetes Configuration

Scheduling Configuration

When creating or editing a cluster, you can configure how the database Pods get scheduled in your Kubernetes cluster. This can be useful to ensure that the Qdrant databases will run on dedicated nodes. You can configure the necessary node selectors and tolerations in the “Kubernetes Configuration” section during cluster creation, or on the cluster detail page.

Authentication to your Qdrant clusters

In Hybrid Cloud the authentication information is provided by Kubernetes secrets.

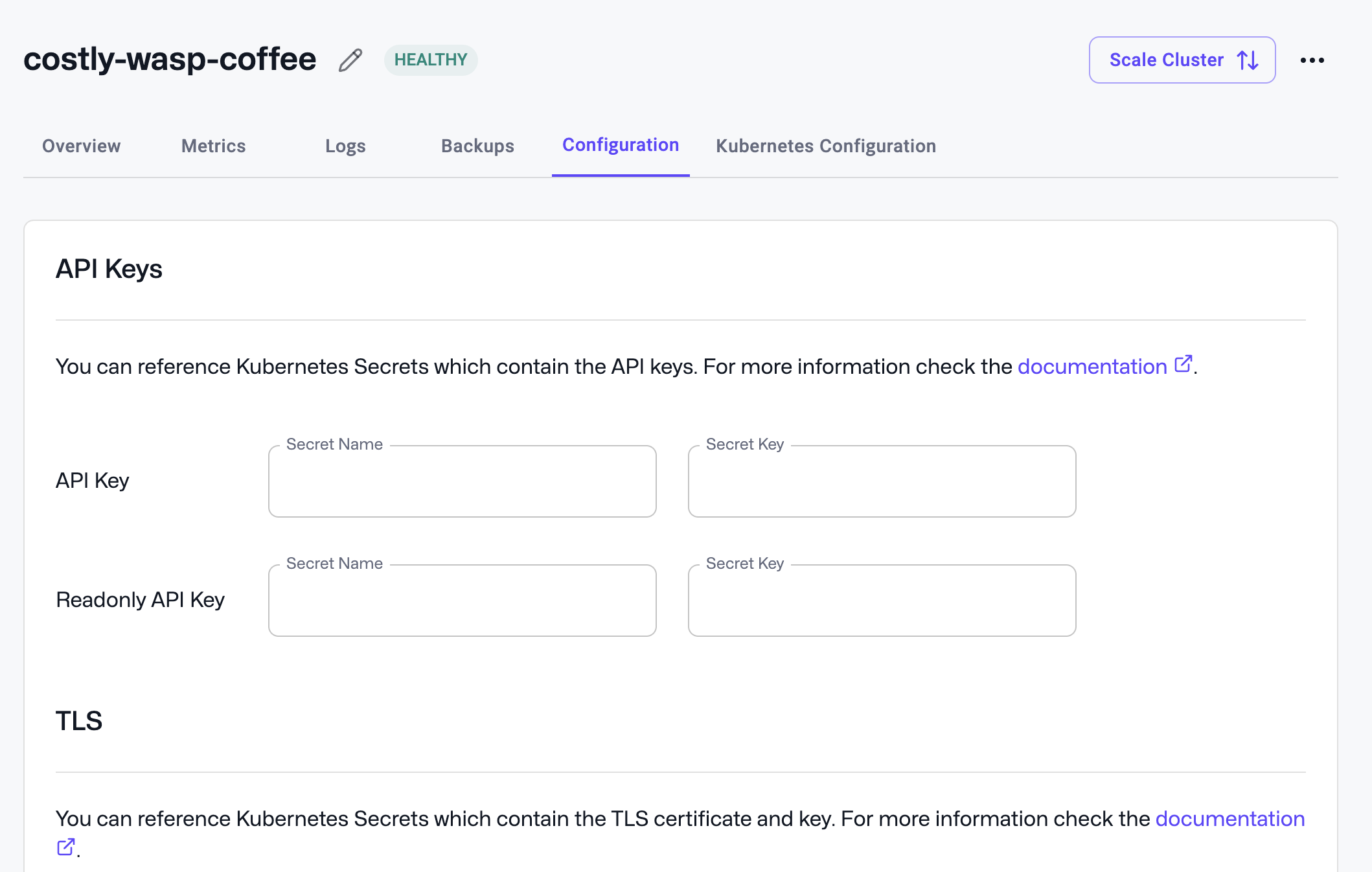

You can configure authentication for your Qdrant clusters in the “Configuration” section of the Qdrant Cluster detail page. There you can configure the Kubernetes secret name and key to be used as an API key and/or read-only API key.

Hybrid Cloud cluster configuration

One way to create a secret is with kubectl:

kubectl create secret generic qdrant-api-key --from-literal=api-key=your-secret-api-key --namespace the-qdrant-namespace

The resulting secret will look like this:

apiVersion: v1
data:
  api-key: ...
kind: Secret
metadata:
  name: qdrant-api-key
  namespace: the-qdrant-namespace
type: kubernetes.io/generic

With this command the secret name would be qdrant-api-key and the key would be api-key.

If you want to retrieve the secret again, you can also use kubectl:

kubectl get secret qdrant-api-key -o jsonpath="{.data.api-key}" --namespace the-qdrant-namespace | base64 --decode

Exposing Qdrant clusters to your client applications

You can expose your Qdrant clusters to your client applications using Kubernetes services and ingresses. By default, a ClusterIP service is created for each Qdrant cluster.

Within your Kubernetes cluster, you can access the Qdrant cluster using the service name and port:

http://qdrant-9a9f48c7-bb90-4fb2-816f-418a46a74b24.qdrant-namespace.svc:6333

This endpoint is also visible on the cluster detail page.

If you want to access the database from your local developer machine, you can use kubectl port-forward to forward the service port to your local machine:

kubectl --namespace your-qdrant-namespace port-forward service/qdrant-9a9f48c7-bb90-4fb2-816f-418a46a74b24 6333:6333

You can also expose the database outside the Kubernetes cluster with a LoadBalancer (if supported in your Kubernetes environment) or NodePort service or an ingress.

The service type and necessary annotations can be configured in the “Kubernetes Configuration” section during cluster creation, or on the cluster detail page.

Especially if you create a LoadBalancer Service, you may need to provide annotations for the loadbalancer configration. Please refer to the documention of your cloud provider for more details.

Examples:

You could also create a Loadbalancer service manually like this:

apiVersion: v1
kind: Service
metadata:
  name: qdrant-9a9f48c7-bb90-4fb2-816f-418a46a74b24-lb
  namespace: qdrant-namespace
spec:
  type: LoadBalancer
  ports:
  - name: http
    port: 6333
  - name: grpc
    port: 6334
  selector:
    app: qdrant
    cluster-id: 9a9f48c7-bb90-4fb2-816f-418a46a74b24

An ingress could look like this:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: qdrant-9a9f48c7-bb90-4fb2-816f-418a46a74b24
  namespace: qdrant-namespace
spec:
    rules:
    - host: qdrant-9a9f48c7-bb90-4fb2-816f-418a46a74b24.your-domain.com
      http:
        paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: qdrant-9a9f48c7-bb90-4fb2-816f-418a46a74b24
              port:
                number: 6333

Please refer to the Kubernetes, ingress controller and cloud provider documentation for more details.

If you expose the database like this, you will be able to see this also reflected as an endpoint on the cluster detail page. And will see the Qdrant database dashboard link pointing to it.

Configuring TLS

If you want to configure TLS for accessing your Qdrant database in Hybrid Cloud, there are two options:

You can offload TLS at the ingress or loadbalancer level.
You can configure TLS directly in the Qdrant database.

If you want to offload TLS at the ingress or loadbancer level, please refer to their respective documents.

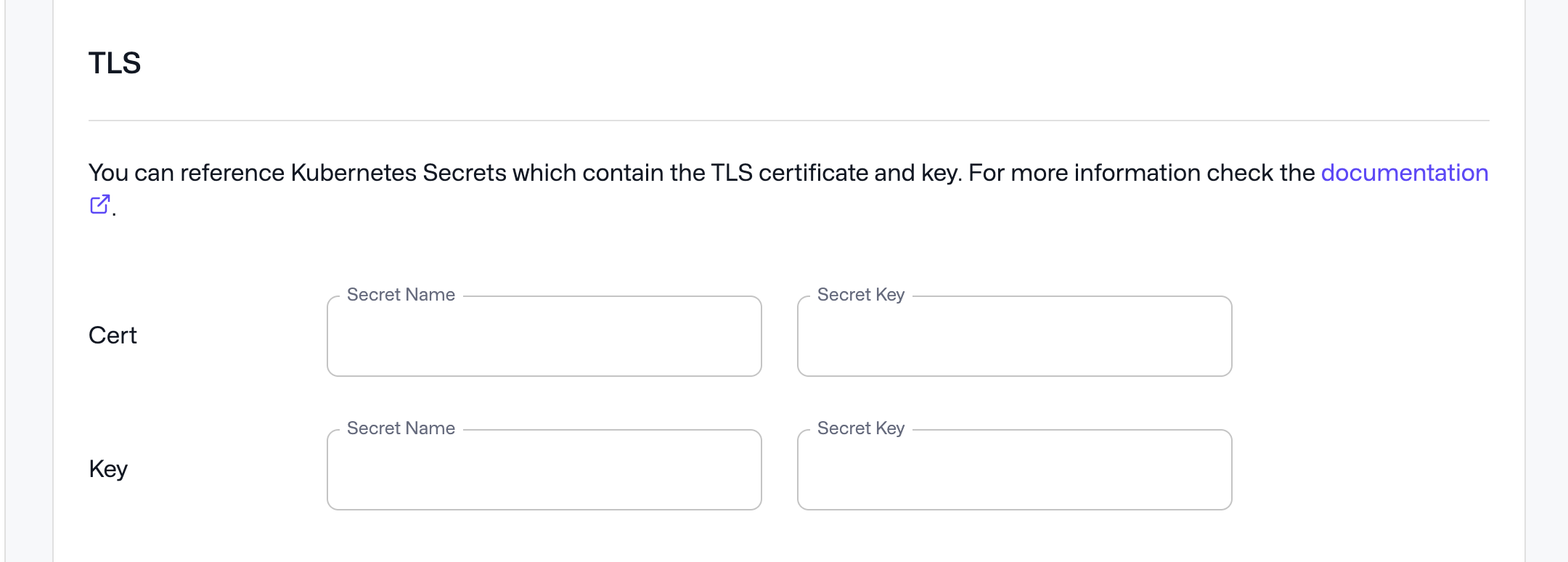

If you want to configure TLS directly in the Qdrant database, you can reference a secret containing the TLS certificate and key in the “Configuration” section of the Qdrant Cluster detail page.

To create such a secret, you can use kubectl:

 kubectl create secret tls qdrant-tls --cert=mydomain.com.crt --key=mydomain.com.key --namespace the-qdrant-namespace

The resulting secret will look like this:

apiVersion: v1
data:
  tls.crt: ...
  tls.key: ...
kind: Secret
metadata:
  name: qdrant-tls
  namespace: the-qdrant-namespace
type: kubernetes.io/tls

With this command the secret name to enter into the UI would be qdrant-tls and the keys would be tls.crt and tls.key.

Configuring CPU and memory resource reservations

When creating a Qdrant database cluster, Qdrant Cloud schedules Pods with specific CPU and memory requests and limits to ensure optimal performance. It will use equal requests and limits for stability. Ideally, Kubernetes nodes should match the Pod size, with one database Pod per VM.

By default, Qdrant Cloud will reserve 20% of available CPU and memory on each Pod. This is done to leave room for the operating system, Kubernetes, and system components. This conservative default may need adjustment depending on node size, whereby smaller nodes might require more, and larger nodes less resources reserved.

You can modify this reservation in the “Configuration” section of the Qdrant Cluster detail page.

If you want to check how much resources are availabe on an empty Kubernetes node, you can use the following command:

kubectl describe node <node-name>

This will give you a breakdown of the available resources to Kubernetes and how much is already reserved and used for system Pods.
